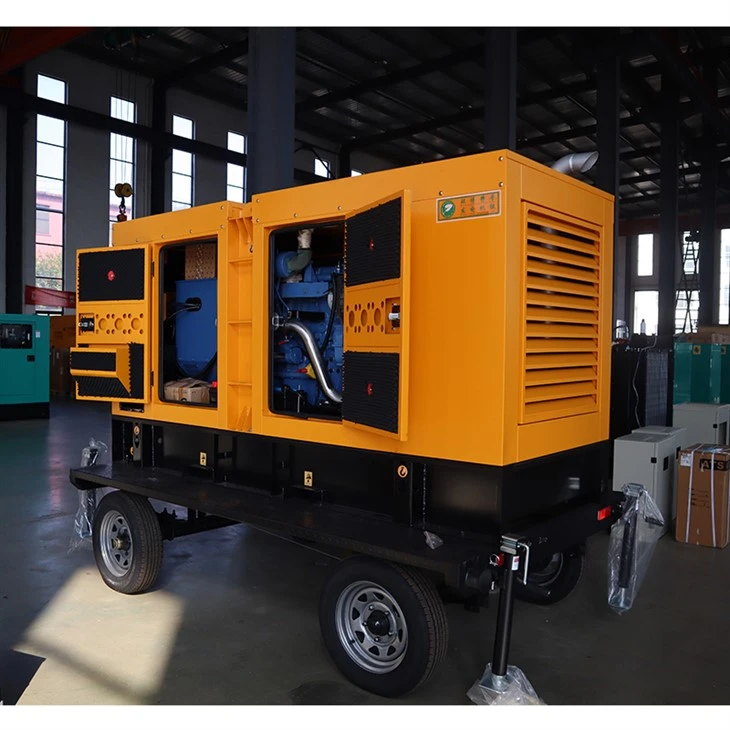

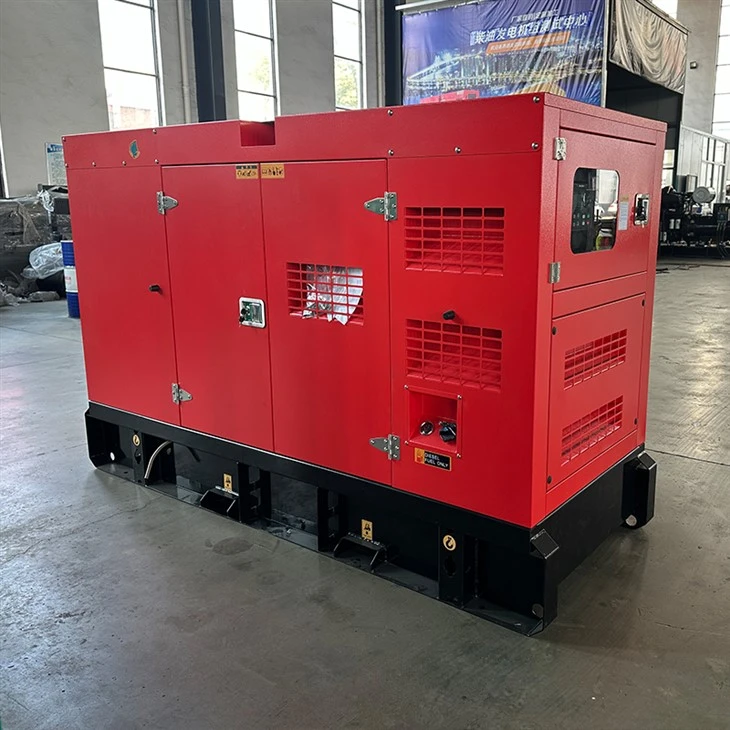

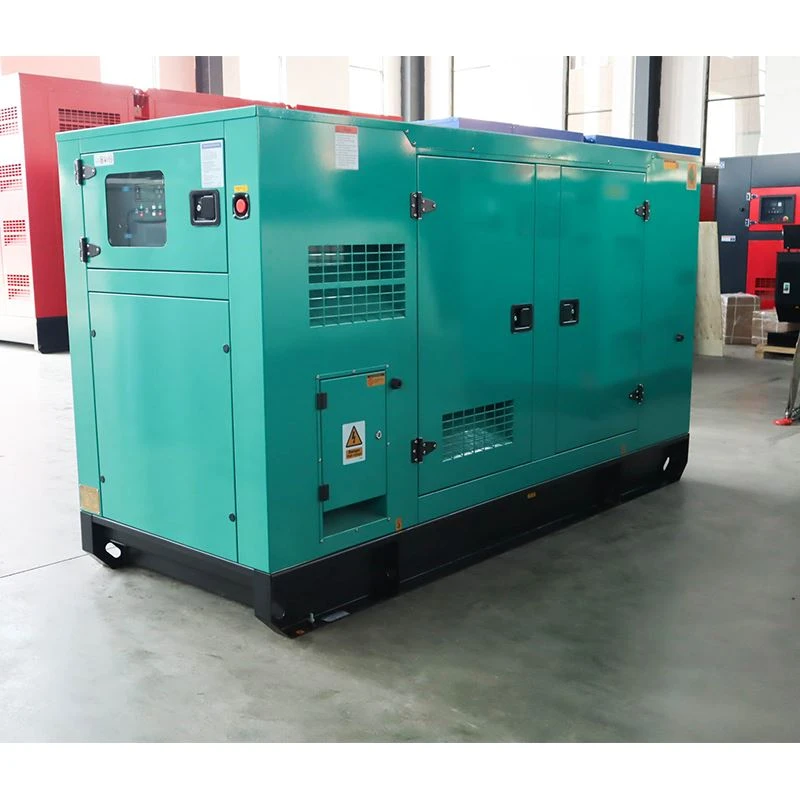

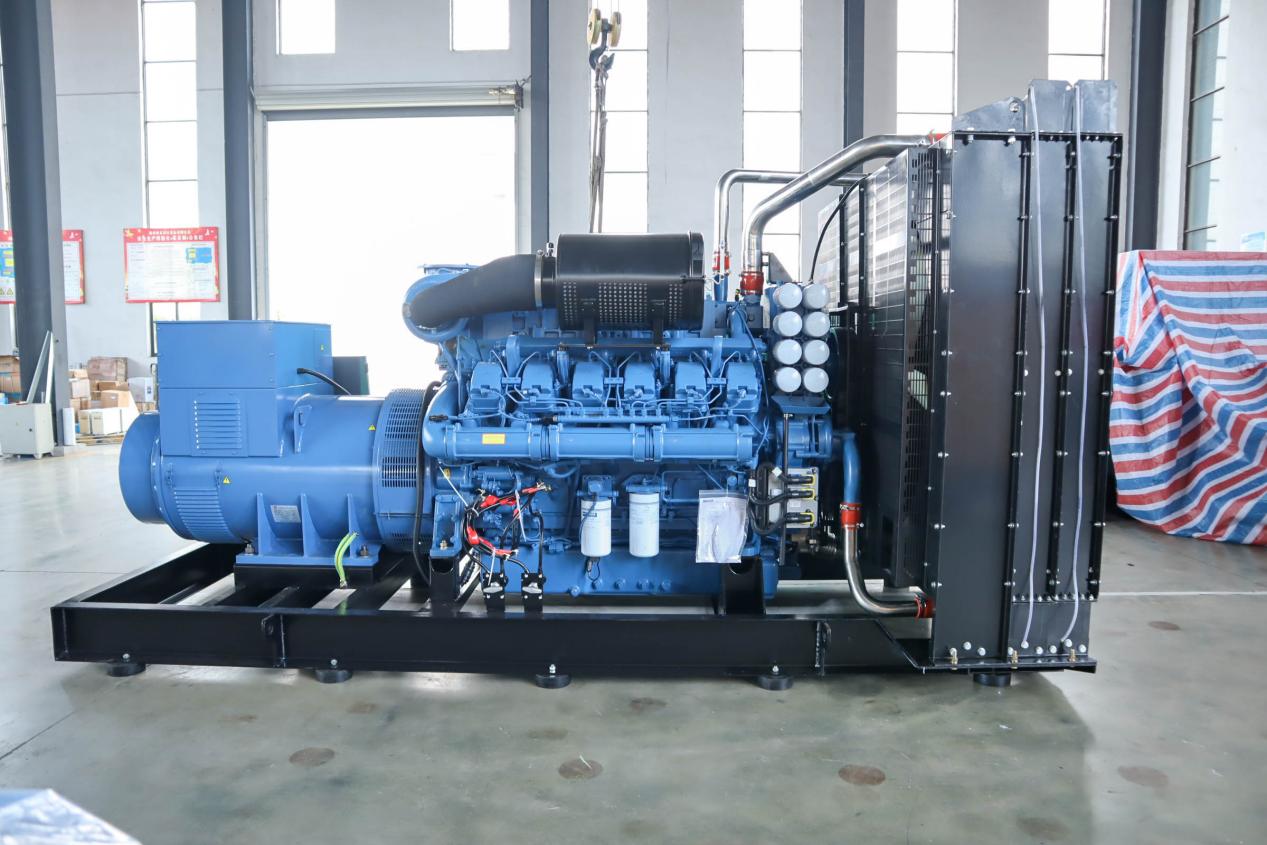

Powered by a Yuchai diesel engine and equipped with a high-quality alternator, intelligent control system, and silent enclosure, the generator is designed to provide dependable standby or emergency power for commercial buildings, factories, construction sites, hotels, hospitals, telecommunications facilities, and more.

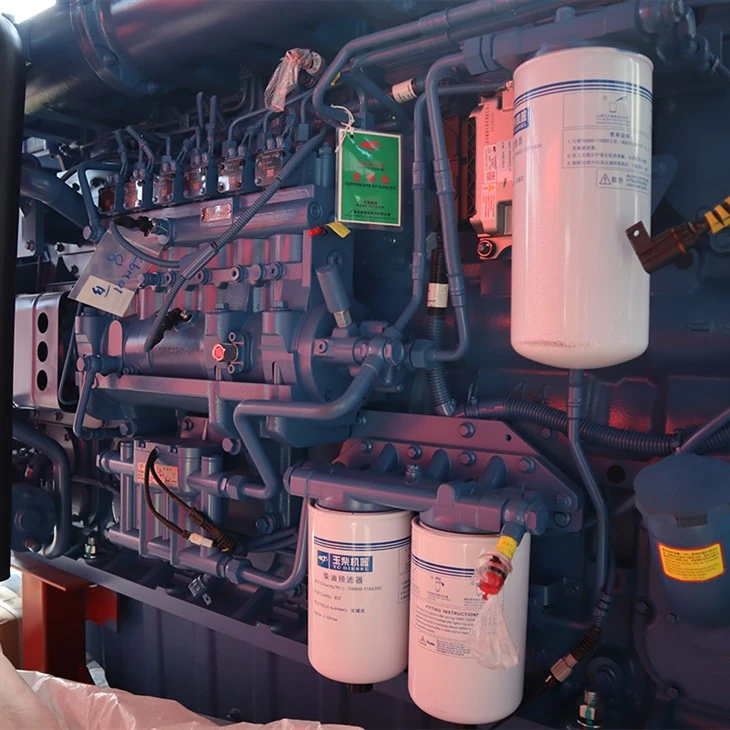

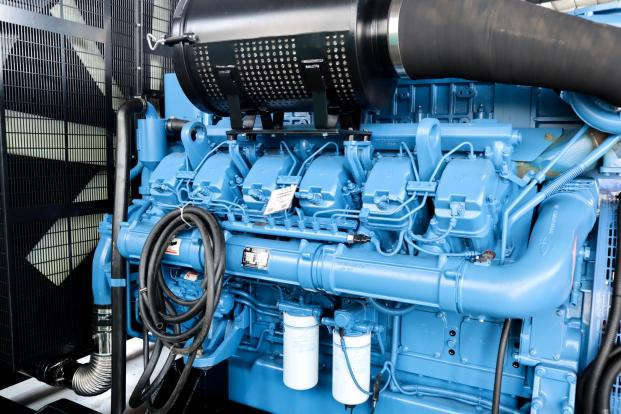

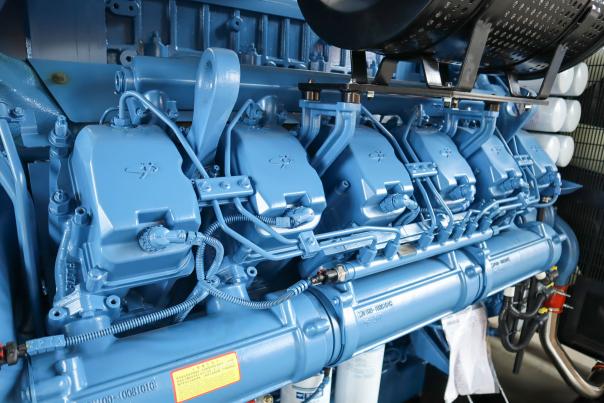

Products developed with German FEV technology. The engine body and cylinder are high-strength alloy cast iron, highly strengthened, and the forged steel crankshaft fixes the whole part. Bearings, small volume, lightweight, high reliability; usually the overhaul cycle must be after 12,000 hours.
| Type | Output Power | Current | Engine model | Cyl. | Bore | Stroke | FuelCon. | Dis. | Dimension(mm ) | Weight | |
| KW | KVA | (A) | (mm) | (mm) | (L) | g/kw.h | L*W*H | (kg) | |||
| JTY-18GF | 18 | 22.5 | 32.4 | YC2108D | 2 | 108 | 120 | 2.20 | ≤225 | 1700*700*1000 | 650 |
| JTY-24GF | 24 | 30 | 43.2 | YC2115D | 2 | 115 | 120 | 2.49 | ≤220 | 1700*700*1000 | 650 |
| JTY-30GF | 30 | 37.5 | 54 | YC2115ZD | 2 | 108 | 115 | 2.11 | ≤205 | 1700*750*1000 | 900 |
| JTY-40GF | 40 | 50 | 72 | YC4D60-D21 | 4 | 108 | 115 | 4.21 | ≤205 | 1800*750*1200 | 920 |
| JTY-50GF | 50 | 62.5 | 90 | YC4D85Z-D20 | 4 | 108 | 115 | 4.21 | ≤200 | 1800*750*1200 | 950 |
| JTY-60GF | 60 | 75 | 108 | YC4D90Z-D20 | 4 | 108 | 115 | 4.21 | ≤200 | 2000*800*1250 | 1100 |
| JTY-64GF | 64 | 80 | 115.2 | YC4A100Z-D20 | 4 | 108 | 125 | 4.58 | ≤200 | 2250*800*1300 | 1200 |
| JTY-90GF | 90 | 112.5 | 162 | YC6B135Z-D20 | 6 | 108 | 125 | 6.87 | ≤202 | 2250*800*1300 | 1300 |
| JTY-100GF | 100 | 125 | 180 | YC6B155L-D21 | 6 | 108 | 125 | 6.87 | ≤200 | 2300*800*1300 | 1500 |
| JTY-120GF | 120 | 150 | 216 | YC6B180L-D20 | 6 | 108 | 132 | 7.26 | ≤192 | 2300*830*1300 | 1600 |
| JTY-132GF | 132 | 165 | 237.6 | YC6A200L-D20 | 6 | 108 | 132 | 7.26 | ≤195 | 2300*830*1300 | 1700 |
| JTY-150GF | 150 | 187.5 | 270 | YC6A230L-D20 | 6 | 108 | 132 | 7.26 | ≤192 | 2400*970*1500 | 2100 |
| JTY-160GF | 160 | 200 | 288 | YC6G245L-D20 | 6 | 112 | 132 | 7.80 | ≤195 | 2500*970*1500 | 2300 |
| JTY-200GF | 200 | 250 | 360 | YC6M350L-D20 | 6 | 120 | 145 | 9.84 | ≤197 | 3100*1050*1750 | 2750 |
| JTY-250GF | 250 | 312.5 | 450 | YC6MK420L-D20 | 6 | 123 | 145 | 10.34 | ≤195 | 3200*1150*1750 | 3000 |
| JTY-280GF | 280 | 350 | 504 | YC6MK420L-D20 | 6 | 123 | 145 | 10.34 | ≤195 | 3200*1150*1750 | 3000 |
| JTY-300GF | 300 | 375 | 540 | YC6MJ480L-D20 | 6 | 131 | 145 | 11.73 | ≤197 | 3200*1200*1750 | 3100 |
| JTY-320GF | 320 | 400 | 576 | YC6MJ480L-D20 | 6 | 131 | 145 | 11.73 | ≤195 | 3200*1200*1750 | 3100 |
| JTY-360GF | 350 | 437.5 | 630 | YC6T550L-D21 | 6 | 145 | 165 | 16.35 | ≤195 | 3300*1250*1850 | 3500 |
| JTY-400GF | 400 | 500 | 720 | YC6T600L-D22 | 6 | 145 | 165 | 16.35 | ≤195 | 3400*1500*1970 | 3900 |
| JTY-440GF | 440 | 550 | 792 | YC6T660L-D20 | 6 | 145 | 165 | 16.35 | ≤195 | 3500*1500*1970 | 4000 |
| JTY-460GF | 460 | 575 | 828 | YC6T700L-D20 | 6 | 145 | 165 | 16.35 | ≤195 | 3500*1500*1950 | 4000 |
| JTY-500GF | 500 | 625 | 900 | YC6TD780L-D20 | 6 | 145 | 165 | 16.35 | ≤195 | 3600*1600*1950 | 4100 |
| JTY-550GF | 550 | 687.5 | 990 | YC6TD840L-D20 | 6 | 200 | 210 | 39.58 | ≤195 | 3650*1600*2000 | 4200 |
| JTY-650GF | 650 | 812.5 | 1170 | YC6C1020L-D20 | 6 | 200 | 210 | 39.58 | ≤195 | 4000*1500*2100 | 5500 |
| JTY-700GF | 700 | 875 | 1260 | YC6C1070L-D20 | 6 | 200 | 210 | 39.58 | ≤195 | 4200*1650*2100 | 5800 |
| JTY-800GF | 800 | 1000 | 1440 | YC6C1220L-D20 | 6 | 200 | 210 | 39.58 | ≤195 | 4300*1750*2200 | 6100 |
| JTY-880GF | 880 | 1100 | 1584 | YC6C1320L-D20 | 6 | 200 | 210 | 39.58 | ≤195 | 5200*2150*2500 | 7500 |
| JTY-1000GF | 1000 | 1250 | 1800 | YC12VC1680L-D20 | 12 | 200 | 210 | 79.17 | ≤195 | 5000*2000*2500 | 9800 |
| JTY-1100GF | 1100 | 1375 | 1980 | YC12VC1680L-D20 | 12 | 200 | 210 | 79.17 | ≤195 | 5100*2080*2500 | 9900 |
| JTY-1200GF | 1200 | 1500 | 2160 | YC12VC2070L-D20 | 12 | 200 | 210 | 79.17 | ≤195 | 5300*2080*2500 | 10000 |
| JTY-1320GF | 1320 | 1650 | 2376 | YC12VC2070L-D20 | 12 | 200 | 210 | 79.17 | ≤195 | 5500*2180*2550 | 11000 |
| JTY-1500GF | 1500 | 1875 | 2700 | YC12VC2270L-D20 | 12 | 200 | 210 | 79.17 | ≤195 | 5600*2280*2600 | 12000 |
| JTY-1600GF | 1600 | 2000 | 2880 | YC12VC2510L-D20 | 12 | 200 | 210 | 79.17 | ≤195 | 5600*2280*2600 | 12500 |
Our Advantages
Complete Pre‑sales & After‑sales Service
FAQ
Q: When is a genset 150kva silent yuchai engine a better choice than an open generator set?
A: A genset 150kva silent yuchai engine is useful where reduced noise and a protected enclosure are important, such as commercial areas, temporary projects, residential-adjacent sites, or outdoor installations. The required acoustic performance should be confirmed for the actual application.
Q: Which load information should be checked before selecting a genset 150kva silent yuchai engine?
A: Review the continuous load, peak demand, motor starting current, power factor, voltage, frequency, phase, operating hours, and expected load growth. These details help determine the required generator rating and configuration.
Q: Can a genset 150kva silent yuchai engine be installed outdoors?
A: Outdoor suitability depends on the enclosure, ventilation, weather protection, exhaust arrangement, and site conditions. The installation should also provide adequate service clearance and comply with local electrical and safety requirements.
Q: What configuration options are available for a genset 150kva silent yuchai engine?
A: Depending on the model, configuration can include voltage and frequency selection, control functions, fuel-tank arrangement, enclosure type, ATS integration, remote monitoring, and other project-specific requirements. Availability should be confirmed for the selected model.
Q: What information helps suppliers quote a genset 150kva silent yuchai engine accurately?
A: Provide the required power, voltage, frequency, phase, application, duty rating, installation location, ambient conditions, enclosure preference, control requirements, and expected operating hours. For a 150KVA unit, a load list is especially useful for confirming the specification.
