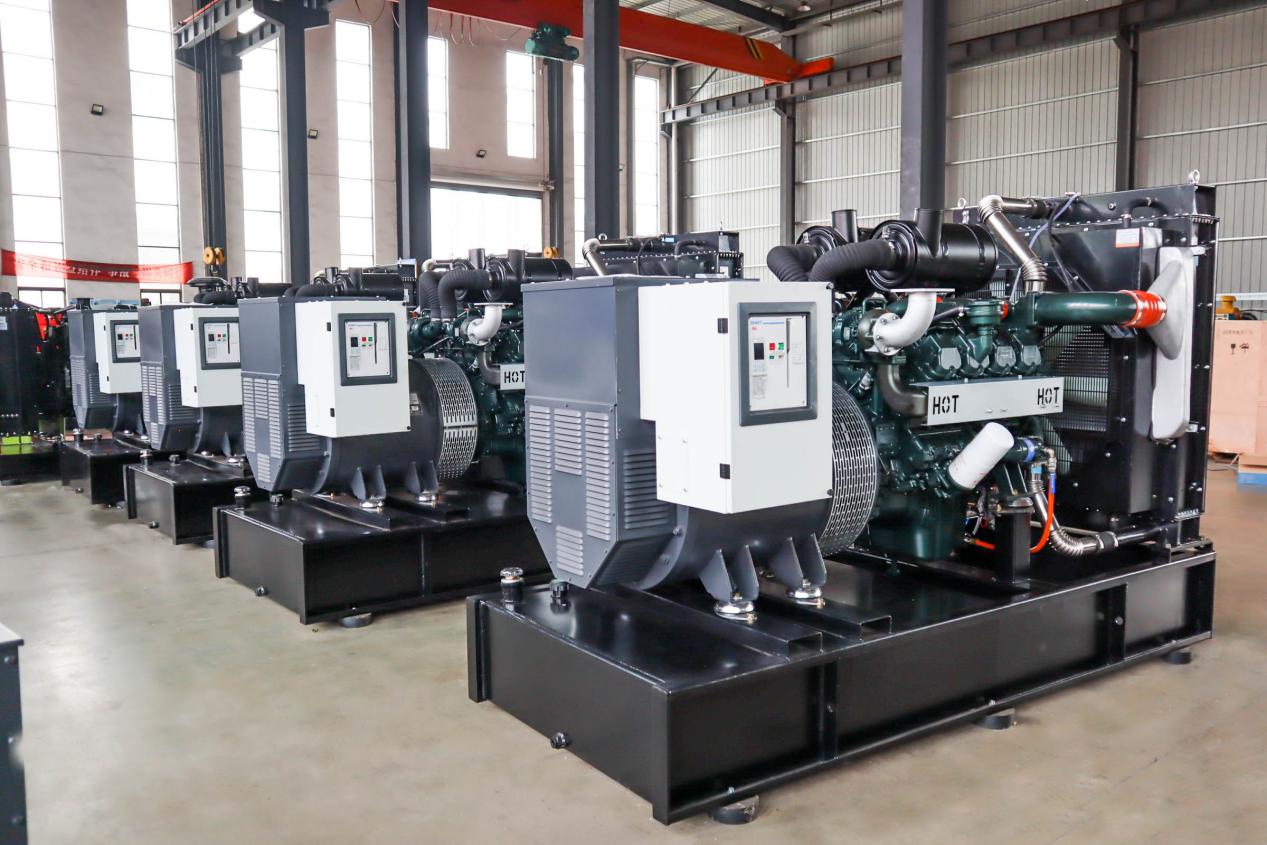

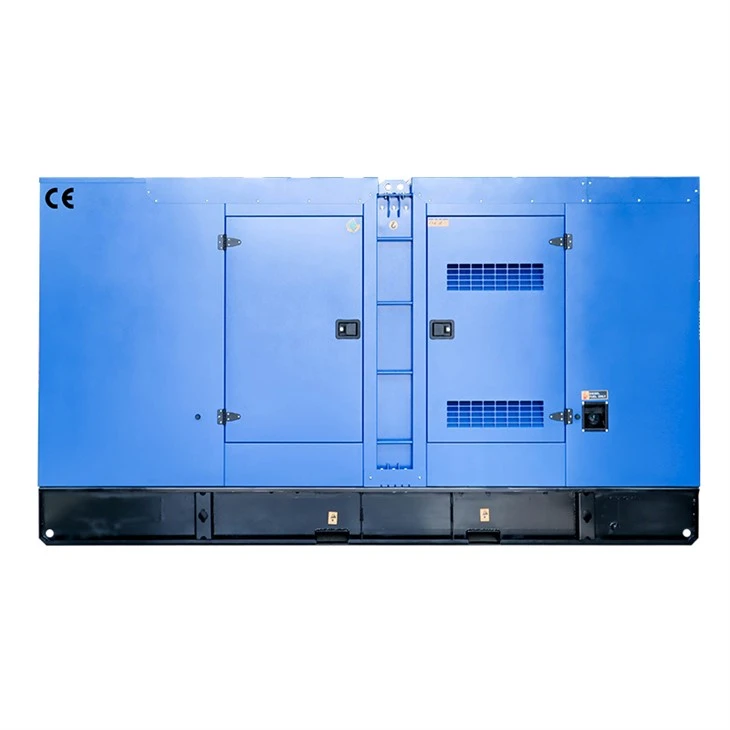

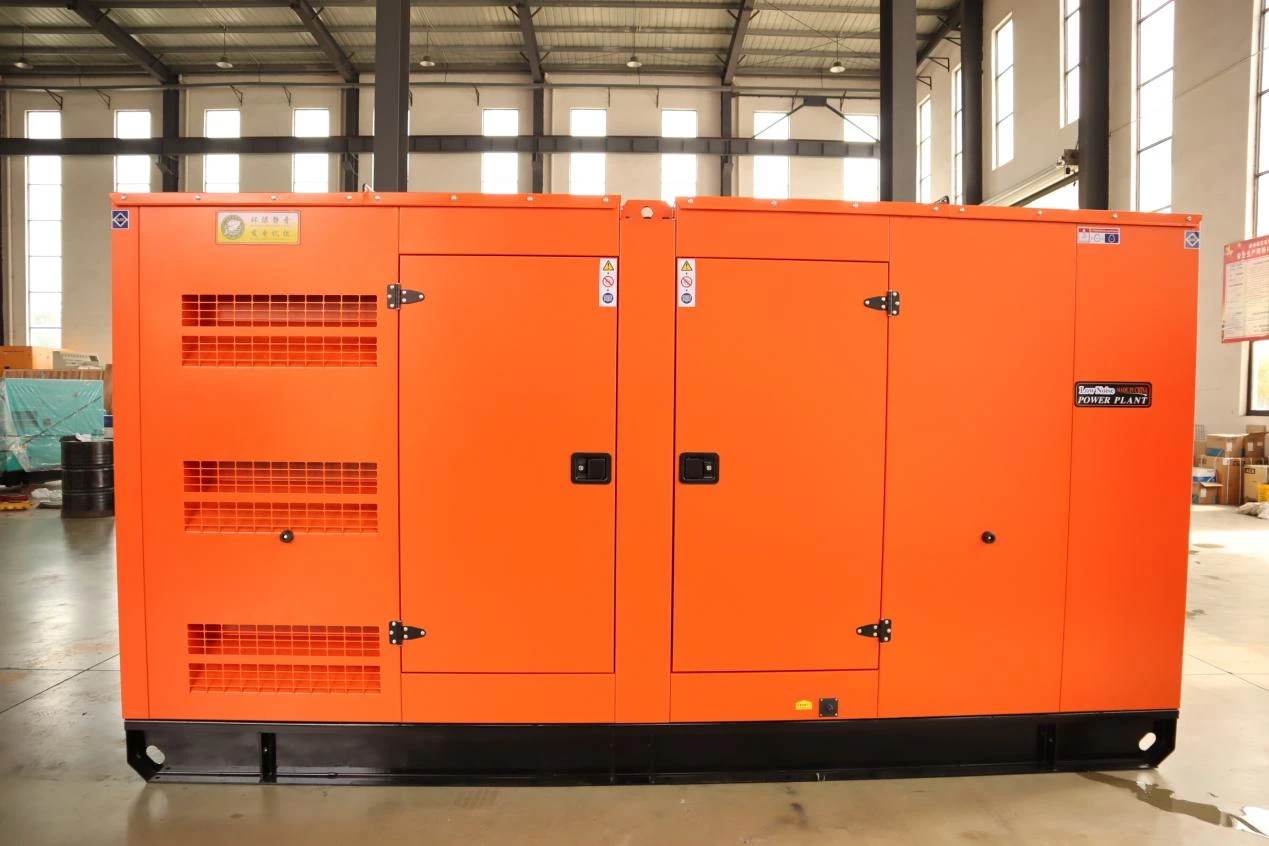

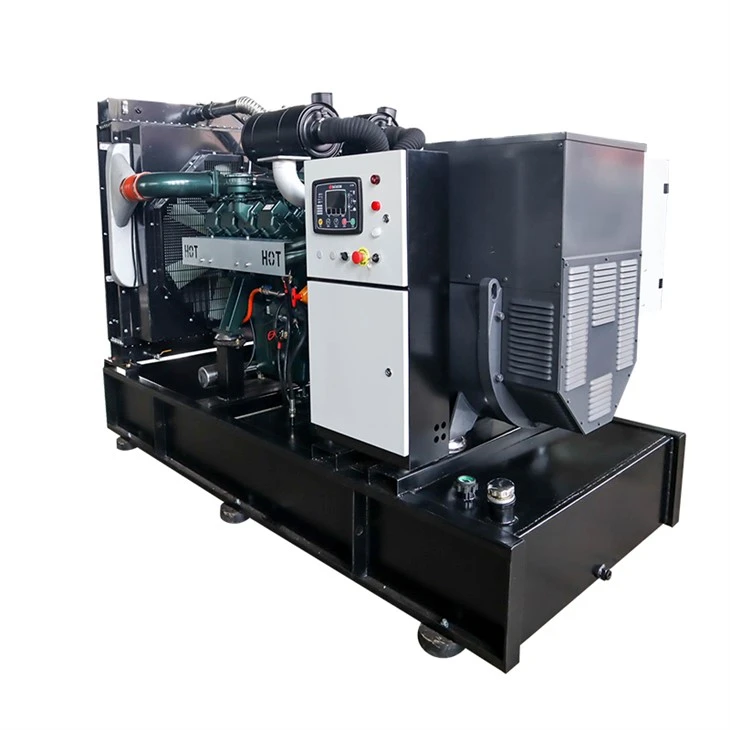

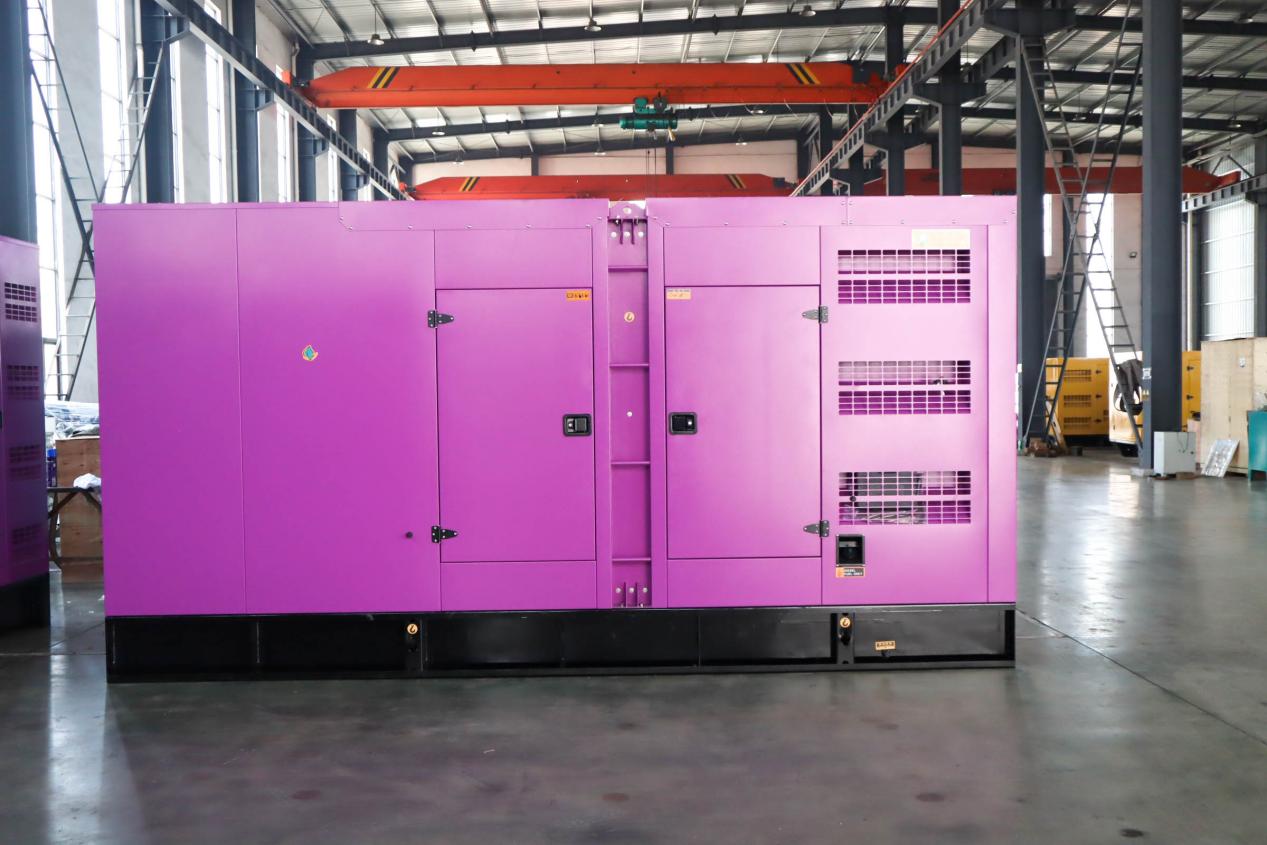

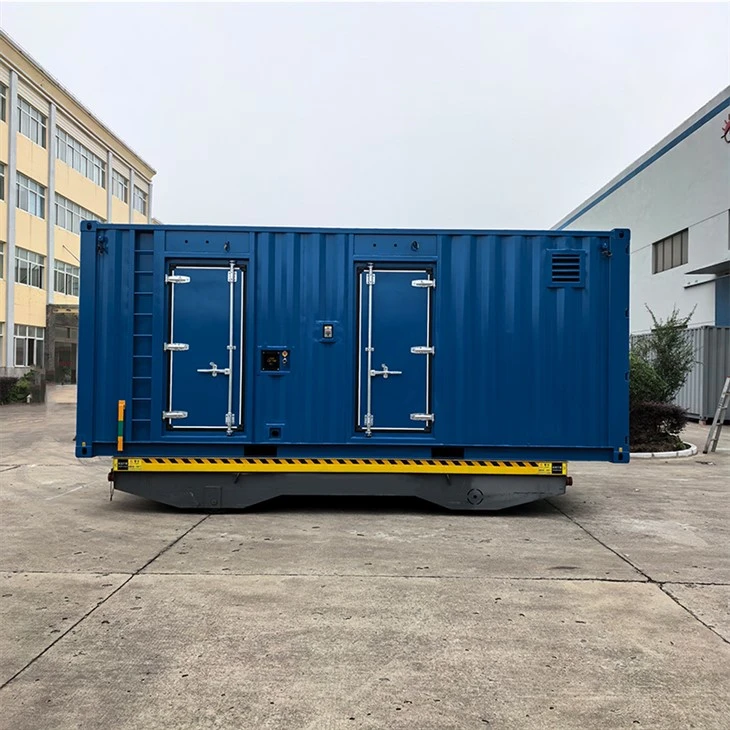

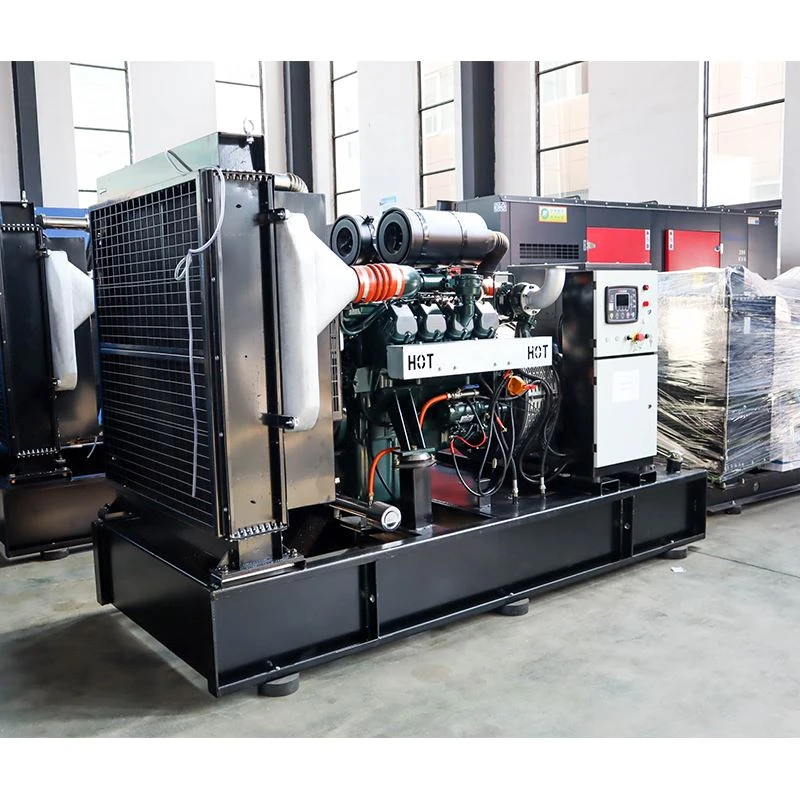

Doosan diesel generator set is forced water-cooling system enables reliable operation under harsh conditions such as high-temperature, dusty mining and construction sites. Multiple configurations are available: open-frame, silent canopy, container-type and mobile trailer type. Widely applied in mines, construction sites, factories, commercial buildings and communication projects as prime or emergency standby power. Each unit passes factory load test, certified with CE and ISO. Global spare-parts network provides reliable after-sales technical support.
| Type | Output Power | Cuurrent | Engine model | Cylinder | Bore*Stroke | FuelCon. | Dis. | Dimension(mm ) | Weight(kg) | |
| KW | KVA | (A) | (mm) | (L) | g/kw.h | L*W*H | ||||
| JTD-50GF | 50 | 62.5 | 90 | DB58 | 6 | 102*118 | 5.785 | 215 | 2000*730*1150 | 900 |
| JTD-64GF | 64 | 80 | 115.2 | D1146 | 6 | 111*139 | 8.071 | 222 | 2200*800*1500 | 1100 |
| JTD-75GF | 75 | 93.7 | 135 | D1146 | 6 | 111*139 | 8.071 | 222 | 2200*800*1500 | 1100 |
| JTD-100GF | 100 | 125 | 180 | D1146T | 6 | 111*139 | 8.071 | 200 | 2300*800*1500 | 1500 |
| JTD-120GF | 120 | 150 | 216 | DP086TA | 6 | 111*139 | 8.1 | 201 | 2300*800*1500 | 1600 |
| JTD-132GF | 132 | 165 | 237.6 | DP086TA | 6 | 111*139 | 8.1 | 202 | 2300*800*1500 | 1600 |
| JTD-150GF | 150 | 136 | 270 | P086TI-1 | 6 | 111*139 | 8.071 | 207 | 2550*1000*1500 | 1750 |
| JTD-180GF | 180 | 225 | 324 | P086TI | 6 | 111*139 | 8.071 | 202 | 2600*1000*1500 | 1800 |
| JTD-200GF | 200 | 250 | 360 | DP086LA | 6 | 111*139 | 8.1 | 203 | 2700*1000*1500 | 1800 |
| JTD-220GF | 220 | 275 | 396 | P126TI | 6 | 123*155 | 11.051 | 205 | 2900*1050*1650 | 2400 |
| JTD-240GF | 240 | 300 | 432 | P126TI | 6 | 123*155 | 11.051 | 205 | 2900*1050*1650 | 2400 |
| JTD-260GF | 260 | 325 | 468 | P126TI-II | 6 | 123*155 | 11.051 | 202 | 3000*1050*1650 | 2600 |
| JTD-300GF | 300 | 375 | 540 | P158LE-1 | 8 | 128*142 | 14.618 | 232 | 3100*1400*1850 | 2700 |
| JTD-320GF | 320 | 400 | 576 | P158LE-1 | 8 | 128*142 | 14.618 | 232 | 3100*1400*1850 | 2700 |
| JTD-350GF | 350 | 437.5 | 630 | P158LE | 8 | 128*142 | 14.618 | 209 | 3100*1400*1850 | 2800 |
| JTD-400GF | 400 | 500 | 720 | P158LE-S | 8 | 128*142 | 14.618 | 210 | 3120*1400*1850 | 3000 |
| JTD-440GF | 440 | 550 | 792 | P180LE | 10 | 128*142 | 18.273 | 205 | 3300*1400*1850 | 3200 |
| JTD-500GF | 500 | 625 | 900 | P222LE-1 | 12 | 128*142 | 21.927 | 200 | 3400*1400*1850 | 3500 |
| JTD-550GF | 550 | 687.5 | 990 | P222LE-S | 12 | 128*142 | 21.927 | 207 | 3400*1400*1850 | 3700 |
| JTD-600GF | 600 | 750 | 1080 | P222LE-II | 12 | 128*142 | 21.927 | 210 | 3500*1400*1850 | 4000 |
| JTD-650GF | 650 | 812.5 | 1170 | P222FE-II | 12 | 128*142 | 25.42 | 207 | 3600*1400*1850 | 4500 |
Our Advantages
We believe that a good product should not only deliver reliable performance, but also provide users with a simple, convenient, and worry-free experience. That is why we combine strict material selection, precise attention to manufacturing details, and user-oriented design throughout every stage of production, delivering diesel generator sets that are reliable, practical, and easy to use.
Complete Pre‑sales & After‑sales Service
We provide professional technical consultation. According to your actual application scenario, load requirement and power supply condition, we match the most suitable generator model and configuration solution.
Every unit passes strict factory inspection to guarantee quality. Standard warranty service is available. We offer on-site commissioning guidance and remote technical support. Sufficient spare parts supply for fast response on fault consultation and troubleshooting guidance. Maintenance suggestions and consumable parts supply are also provided.
