The generator set can be configured according to different project and regional requirements, including voltage, frequency, alternator, control system, cooling system, soundproof or weatherproof enclosure, ATS, synchronization panels, and remote monitoring systems.
Typical Applications
Industrial Applications
Factories, manufacturing plants, steel mills, chemical plants, mines, and industrial facilities.
01
Commercial Applications
Shopping malls, hotels, office buildings, commercial complexes, and large facilities.
02
Critical Facilities
Hospitals, data centers, airports, telecommunication centers, banks, and emergency facilities.
03
Construction & Infrastructure
Construction sites, road and bridge projects, oil & gas projects, and large infrastructure developments.
04
Remote Power
Mining sites, oil fields, islands, remote areas, and locations with limited or unreliable grid power.
05
| Type | Output Power | Current | Engine model | Cylinder | Bore*Stroke | FuelCon. | Dis. | Dimension(mm ) | Weight | |
| KW | KVA | (A) | (mm) | (L) | g/kw.h | L*W*H | (kg) | |||
| JTP-7GF | 7 | 8.75 | 12.6 | 403A-11G1 | 3 | 77*87 | 0.99 | 248 | 1200*700*1100 | 500 |
| JTP-8GF | 8 | 10 | 14.4 | 403D-11G | 3 | 77*81 | 1.13 | 252 | 1200*700*1100 | 300 |
| JTP-10GF | 10 | 12.5 | 18 | 403A-15G1 | 3 | 84*90 | 1.62 | 264 | 1250*700*1100 | 350 |
| JTP-11GF | 11 | 13.75 | 19.8 | 403D-15G | 3 | 84*90 | 1.49 | 247 | 1250*700*1100 | 350 |
| JTP-12GF | 12 | 15 | 21.6 | 403A-15G2 | 3 | 84*90 | 1.49 | 264 | 1250*700*1100 | 350 |
| JTP-16GF | 16 | 20 | 28.8 | 404A-22G1 | 4 | 84*100 | 2.2 | 237 | 1500*730*1300 | 500 |
| JTP-16GF | 16 | 20 | 28.8 | 404D-22G | 4 | 84*100 | 2.2 | 245 | 1500*730*1300 | 500 |
| JTP-24GF | 24 | 30 | 43.2 | 1103A-33G | 3 | 105*127 | 3.3 | 211 | 1770*750*1600 | 800 |
| JTP-36GF | 36 | 45 | 64.8 | 1103A-33TG1 | 3 | 105*127 | 3.3 | 211 | 2050*750*1600 | 920 |
| JTP-50GF | 50 | 62.5 | 90 | 1104A-44TG1 | 4 | 105*127 | 4.4 | 208 | 2250*750*1600 | 1100 |
| JTP-50GF | 50 | 62.5 | 90 | 1103A-33TG2 | 3 | 105*127 | 3.3 | 215 | 2200*750*1600 | 1050 |
| JTP-64GF | 64 | 80 | 115.2 | 1104A-44TG2 | 4 | 105*127 | 4.4 | 208 | 2300*750*1600 | 1150 |
| JTP-64GF | 64 | 80 | 115.2 | 1104C-44TAG1 | 4 | 100*127 | 4.4 | 205 | 2480*760*1600 | 1250 |
| JTP-80GF | 80 | 100 | 144 | 1104C-44TAG2 | 4 | 100*127 | 4.4 | 208 | 2480*760*1600 | 1250 |
| JTP-110GF | 110 | 137.5 | 198 | 1106A-70TG1 | 6 | 100*120 | 7.01 | 199 | 2480*760*1600 | 1250 |
| JTP-120GF | 120 | 150 | 216 | 1106A-70TAG2 | 6 | 105*135 | 7.01 | 208 | 2650*760*1600 | 1450 |
| JTP-140GF | 140 | 175 | 252 | 1106A-70TAG3 | 6 | 105*135 | 7.01 | 206 | 2700*900*1600 | 1700 |
| JTP-160GF | 160 | 200 | 288 | 1106A-70TAG4 | 6 | 105*135 | 7.01 | 220 | 3000*1000*1700 | 2100 |
| JTP-180GF | 180 | 225 | 324 | 1306A-E87TAG4 | 6 | 116*136 | 8.7 | 206 | 3000*1000*1700 | 2100 |
| JTP-180GF | 180 | 225 | 324 | 1506A-E88TAG2 | 6 | 112*149 | 8.8 | 200 | 3000*1000*1700 | 2100 |
| JTP-200GF | 200 | 250 | 360 | 1306A-E87TAG6 | 6 | 116*136 | 8.7 | 198 | 3100*1000*1700 | 2150 |
| JTP-200GF | 200 | 250 | 360 | 1506A-E88TAG3 | 6 | 112*149 | 8.8 | 200 | 3100*1000*1700 | 2150 |
| JTP-220GF | 220 | 275 | 396 | 1606A-E93TAG4 | 6 | 116*136 | 8.7 | 201 | 3100*1000*1700 | 2150 |
| JTP-220GF | 220 | 275 | 396 | 1506A-E88TAG4 | 6 | 112*149 | 8.8 | 198 | 3100*1000*1700 | 2150 |
| JTP-240GF | 240 | 300 | 432 | 1606A-E93TAG5 | 6 | 116*136 | 12.5 | 216 | 3100*1000*1700 | 2150 |
| JTP-240GF | 240 | 300 | 432 | 1506A-E88TAG5 | 6 | 112*149 | 8.8 | 198 | 3100*1000*1700 | 2150 |
| JTP-280GF | 280 | 350 | 504 | 2206C-E13TAG2 | 6 | 130*157 | 12.5 | 209 | 3600*1200*2000 | 3200 |
| JTP-320GF | 320 | 400 | 576 | 2206C-E13TAG3 | 6 | 130*157 | 12.5 | 206 | 3650*1200*2000 | 3300 |
| JTP-360GF | 360 | 450 | 648 | 2506C-E15TAG1 | 6 | 137*171 | 15.2 | 211 | 4000*1200*2100 | 3700 |
| JTP-400GF | 400 | 500 | 720 | 2506C-E15TAG2 | 6 | 137*171 | 15.2 | 211 | 4050*1200*2100 | 3760 |
| JTP-480GF | 480 | 600 | 864 | 2806C-E18TAG1A | 6 | 145*183 | 18.1 | 216 | 4100*1600*2200 | 4600 |
| JTP-520GF | 520 | 650 | 936 | 2806A-E18TAG2 | 6 | 145*183 | 18.1 | 202 | 4200*1600*2200 | 4800 |
| JTP-600GF | 600 | 750 | 1080 | 4006-23TAG2A | 6 | 160*190 | 22.9 | 209 | 4500*1800*2300 | 5500 |
| JTP-640GF | 640 | 800 | 1152 | 4006-23TAG3A | 6 | 160*190 | 22.9 | 209 | 4600*1800*2300 | 6000 |
| JTP-720GF | 720 | 900 | 1296 | 4008TAG1A | 8 | 160*190 | 30.5 | 206 | 4800*2100*2500 | 7700 |
| JTP-800GF | 800 | 1000 | 1440 | 4008TAG2A | 8 | 160*190 | 30.5 | 206 | 4900*2100*2500 | 8000 |
| JTP-1000GF | 1000 | 1250 | 1800 | 4012-46TWG2A | 12 | 160*190 | 45.8 | 212 | 5300*2200*2600 | 10000 |
| JTP-1100GF | 1100 | 1375 | 1980 | 4012-46TWG3A | 12 | 160*190 | 45.8 | 212 | 5300*2200*2600 | 10000 |
| JTP-1200GF | 1200 | 1500 | 2160 | 4012-46TAG2A | 12 | 160*190 | 45.8 | 212 | 5400*2200*2600 | 11000 |
| JTP-1360GF | 1360 | 1700 | 2448 | 4012-46TAG3A | 12 | 160*190 | 45.8 | 212 | 5500*2200*2600 | 12000 |
| JTP-1480GF | 1480 | 1850 | 2664 | 4016TAG1A | 16 | 160*190 | 61.1 | 205 | 5700*2800*3100 | 13500 |
| JTP-1600GF | 1600 | 2000 | 2880 | 4016TAG2A | 16 | 160*190 | 61.1 | 208 | 5800*2800*3100 | 14000 |
| JTP-1800GF | 1800 | 2250 | 3240 | 4016-61TRG3 | 16 | 160*190 | 61.1 | 205 | 5900*2800*3100 | 15700 |
Our Advantages
Strict Quality Control for Reliable Generator Sets
We adhere to high-standard manufacturing. High-quality components are adopted instead of inferior spare parts. Every production procedure, from sheet metal processing and wiring assembly to complete unit assembly, follows standardized technical requirements.

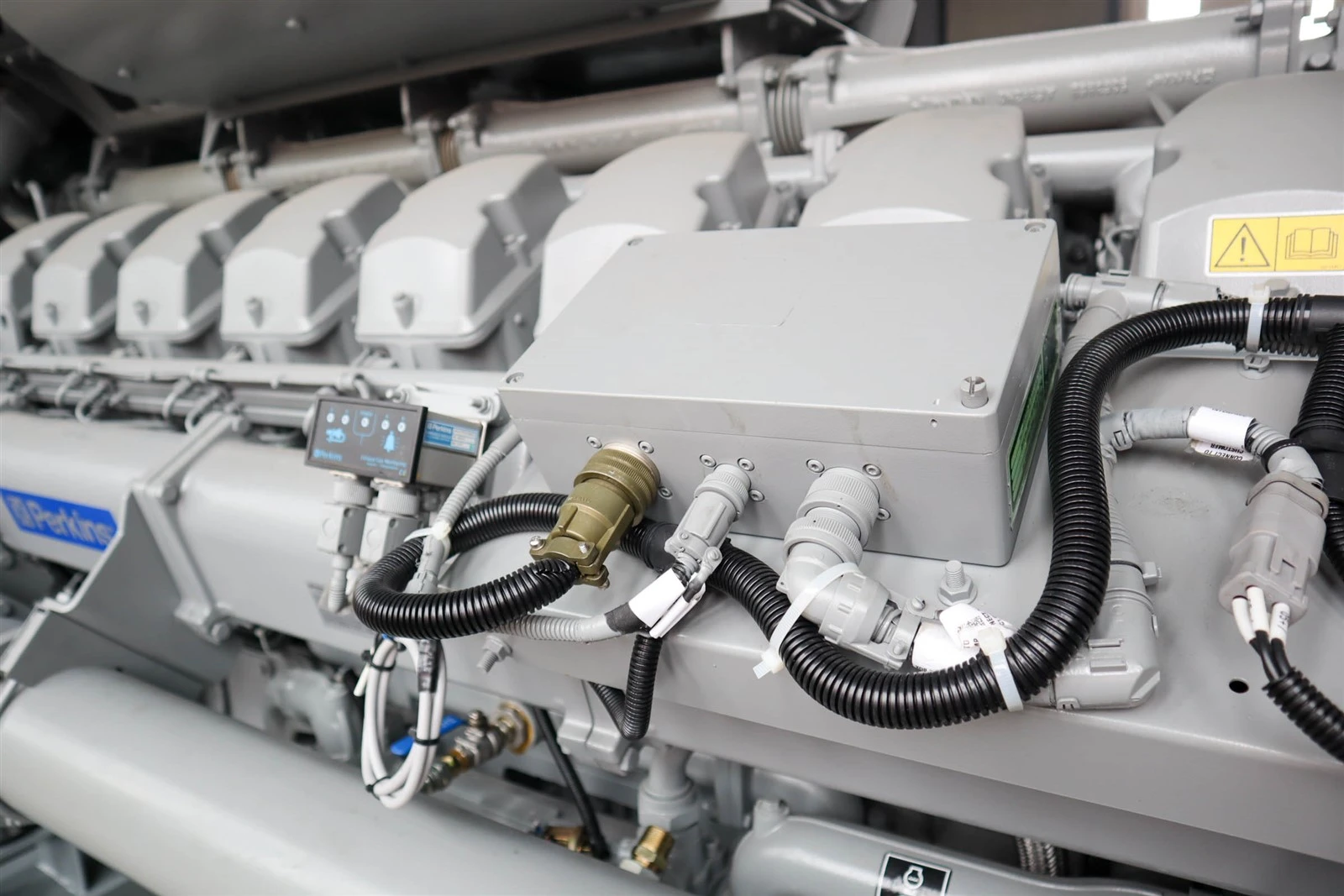

Harnesses are equipped with waterproof connectors with color-coded wiring. Cabinet panels are robust with fine welding workmanship. Each unit undergoes multiple rounds of factory tests, including load testing, voltage inspection and safety protection verification. Every detail is strictly checked to lower failure risks and ensure long-term stable operation under various harsh working conditions.
Complete Pre‑sales & After‑sales Service
We provide professional technical consultation. According to your actual application scenario, load requirement and power supply condition, we match the most suitable generator model and configuration solution.
Every unit passes strict factory inspection to guarantee quality. Standard warranty service is available. We offer on-site commissioning guidance and remote technical support. Sufficient spare parts supply for fast response on fault consultation and troubleshooting guidance. Maintenance suggestions and consumable parts supply are also provided. We follow up order delivery and post-sales issues to remove customers' worries.
