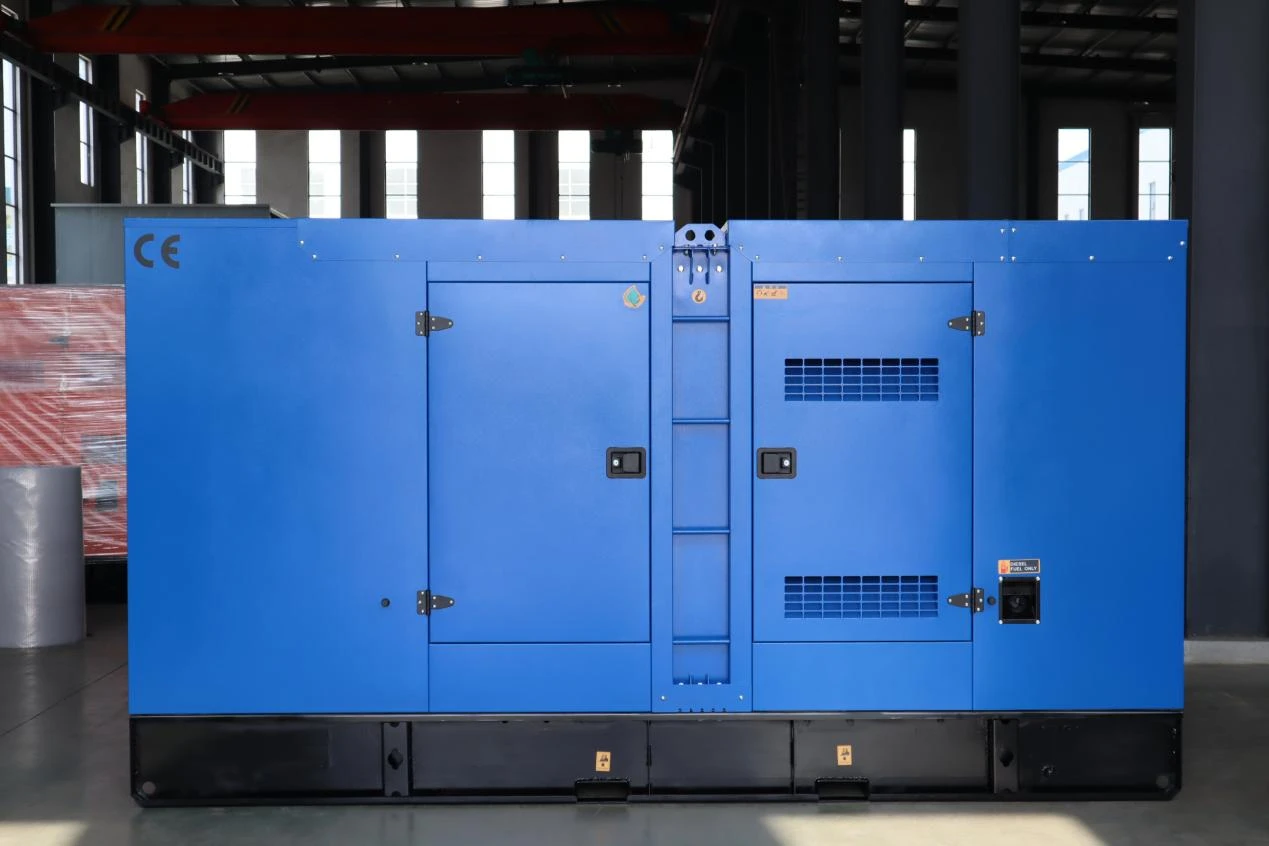

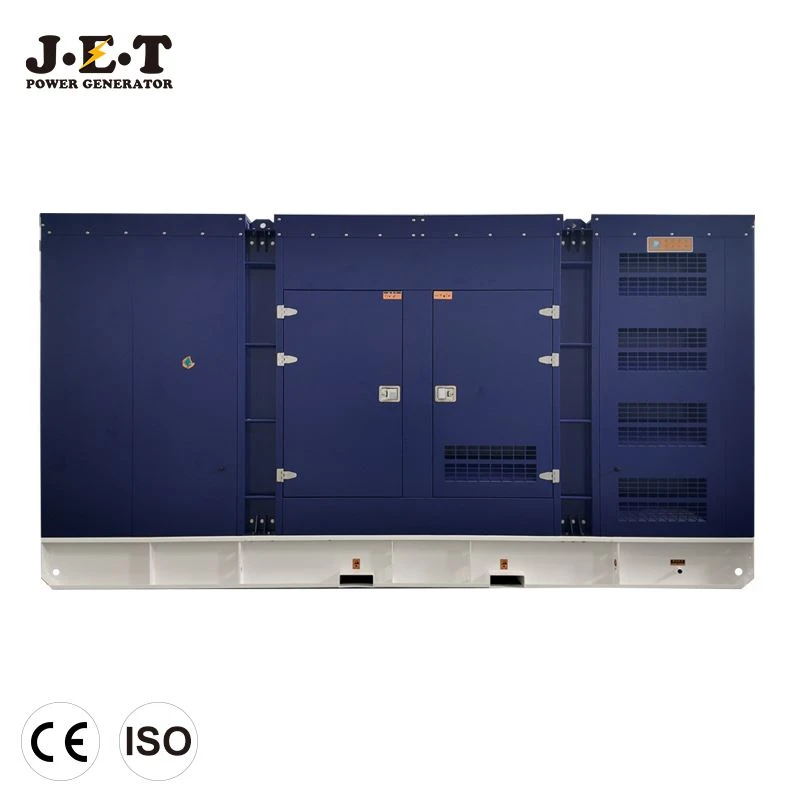

700KW Shangchai(SDEC) diesel generator set is equipped with 6-cylinder in-line four-stroke diesel engine 6KTAA25-G31 With turbocharged air-to-air intercooled technology, it delivers sufficient power reserve and strong heavy-load capacity with excellent fuel consumption performance, adapting to various complex industrial conditions such as high-temperature and dusty environment.
| Type | Output Power | Current | Engine model | Cylinder | Bore*Stroke | FuelCon. | Dis. | Dimension(mm ) | Weight(kg) | |
| KW | KVA | (A) | (mm) | (L) | g/kw.h | L*W*H | ||||
| JTS-50GF | 50 | 62.5 | 90 | SC4H95D2 | 4 | 105*124 | 4.3 | 204 | 2650*1100*1700 | 2300 |
| JTS-75GF | 75 | 93.75 | 135 | SC4H115D2 | 4 | 105*124 | 4.3 | 204 | 2650*1100*1700 | 2300 |
| JTS-100GF | 100 | 125 | 180 | SC4H160D2 | 4 | 105*124 | 4.3 | 198 | 2500*900*1500 | 2000 |
| JTS-120GF | 120 | 150 | 216 | SC4H180D2 | 4 | 105*124 | 4.3 | 198 | 2220*840*1190 | 1200 |
| JTS-150GF | 150 | 187.5 | 270 | SC7H230D2 | 6 | 105*124 | 6.5 | 199 | 2700*900*1750 | 2300 |
| JTS-170GF | 170 | 212.5 | 306 | SC7H250D2 | 6 | 105*124 | 6.5 | 195 | 2900*1100*1600 | 2480 |
| JTS-180GF | 180 | 225 | 324 | SC8D280D2 | 6 | 114*135 | 8.27 | 200 | 2800*900*1800 | 2400 |
| JTS-200GF | 200 | 250 | 360 | SC9D310D2 | 6 | 114*144 | 8.82 | 195 | 2900*1200*1800 | 2500 |
| JTS-220GF | 220 | 275 | 396 | SC9D340D2 | 6 | 114*144 | 8.82 | 195 | 3000*1200*1800 | 2600 |
| JTS-250GF | 250 | 312.5 | 450 | SC13G355D2 | 6 | 135*150 | 12.88 | 200 | 3000*1300*1800 | 2800 |
| JTS-250GF | 250 | 312.5 | 450 | SC13G420D2 | 6 | 135*150 | 12.88 | 200 | 3000*1300*1800 | 2800 |
| JTS-300GF | 300 | 375 | 540 | SC13G420D2 | 6 | 135*150 | 12.88 | 200 | 3000*1300*1800 | 2800 |
| JTS-300GF | 300 | 375 | 540 | SC12E460D2 | 6 | 128*153 | 11.8 | 192 | 3100*1350*1900 | 3200 |
| JTS-320GF | 320 | 400 | 576 | SC15G500D2 | 6 | 135*165 | 14.16 | 200 | 3200*1350*1950 | 3500 |
| JTS-350GF | 350 | 437.5 | 630 | SC15G500D2 | 6 | 135*165 | 14.16 | 200 | 3200*1350*1950 | 3500 |
| JTS-400GF | 400 | 500 | 720 | SC25G610D2 | 12 | 135*150 | 25.8 | 202 | 3400*1500*1950 | 4200 |
| JTS-450GF | 450 | 562.5 | 810 | SC25G690D2 | 12 | 135*150 | 16.8 | 202 | 3500*1500*1950 | 4500 |
| JTS-500GF | 500 | 625 | 900 | SC27G755D2 | 12 | 135*155 | 26.6 | 202 | 3500*1500*1950 | 4800 |
| JTS-550GF | 550 | 687.5 | 990 | SC27G830D2 | 12 | 135*155 | 26.6 | 202 | 3600*1600*2000 | 5000 |
| JTS-600GF | 600 | 750 | 1080 | SC27G900D2 | 12 | 135*155 | 26.6 | 202 | 3650*1600*2000 | 5000 |
| JTS-660GF | 660 | 825 | 1188 | SC33W990D2 | 6 | 180*215 | 32.8 | 205 | 4000*1600*2200 | 5200 |
| JTS-800GF | 800 | 1000 | 1440 | SC33W1150D | 6 | 180*215 | 32.8 | 205 | 4000*1600*2200 | 5200 |
Our Advantages
We maintain strict control over the materials and manufacturing processes used in our generator sets. From enclosure steel, welding workmanship, and sound-absorbing materials to the engine, alternator, electrical components, and cable connections, every stage is carefully controlled for quality.
We also focus on the actual user experience. Practical details such as enclosure structure, operating space, service access, door design, ventilation, and airflow are carefully optimized to make the generator not only reliable and durable, but also easier to install, operate, and maintain.
Complete Pre‑sales & After‑sales Service
We provide professional technical consultation. According to your actual application scenario, load requirement and power supply condition, we match the most suitable generator model and configuration solution.
Every unit passes strict factory inspection to guarantee quality. Standard warranty service is available. We offer on-site commissioning guidance and remote technical support. Sufficient spare parts supply for fast response on fault consultation and troubleshooting guidance. Maintenance suggestions and consumable parts supply are also provided.
FAQ
Q: What does 60 Hz, 3 Phase mean?
A: 60 Hz refers to the electrical frequency of the generator output, while three-phase refers to the type of electrical power system.
A 60 Hz three-phase generator is commonly used for industrial facilities, commercial buildings, large construction projects, data-related facilities, and other applications requiring three-phase electrical power.
The output voltage should be selected according to the customer's local electrical standards and project requirements.
Q: Can the 700 kW generator be used as a standby power source?
A: Yes. The generator can be configured as a standby power source for facilities that require reliable backup electricity during utility power failures.
An ATS (Automatic Transfer Switch) can be integrated into the power system to automatically transfer the load between utility power and generator power according to the system configuration.
Q: Can an ATS be installed with the 700 kW generator?
A: Yes. An ATS can be supplied as part of the complete standby power solution.
The ATS can automatically detect utility power conditions and transfer the electrical load to the generator when the utility supply fails, depending on the selected control system and configuration.
